Masterlink ML-9600


(DISCONTINUED)

Presenting the new MasterLink ML-9600 two-track hard disc recorder - literally, the state-of-the-art in do-it-yourself mixing and mastering systems.

Only MasterLink lets you capture your mixes in stunning 24-bit, 96kHZ; edit your recording and apply finishing tools - such as high-resolution parametric EQ Compression, limiting and normalizing - all in the same system and then burn the finished recording in either industry-standard Redbook, or new high resolution CD24, fast becoming the new standard for archiving and transferring high-res. audio files to the mastering room.

But don't take our word for it. Visit your local Alesis dealer today and learn why top pros like George Massenburg, Roger Nichols, Elliot Scheiner, Al Schmitt, and Greg Ladanyi have traded in their DAT's for Masterlink. Or better yet, just get off your musically inclined little butt and buy one!

After all, it's only your career we're talking about here.

Please Note: Refurbished MasterLink 9600 do not ship with remotes

Features

  • Huge internal hard disk recorder...up to 30 hours of two-track audio capacity
  • Burn CDs using Standard "Red Book" (16-bit/44.1kHz) and high resolution formats…up 24-bit, 96kHz
  • Choose any combination of digital resolutions (16-, 20-, and 24-bit) and sample rates (44.1, 48, 88.2, and 96kHz) with full AIFF compatibility
  • Organize song playlists with total control of fade-ins, fade-outs, track gain, start points, track cropping and more
  • Stores 16 different playlists containing up to 99 songs each
  • Onboard digital signal processing: compression, EQ, limiting, and normalization
  • Uses inexpensive, readily available CD-Rs

Specs

  • Audio (44.1/48kHz frequencies) Frequency Response: 20Hz-20kHz, +0, -0.3 dB THD+N: <0.002% @ 1kHz, -1 dBFS Signal-to-Noise Ratio: 113 dB, A-weighted Analog/Digital Converter: 24-bit 128x oversampling Digital/Analog Converter: 24-bit 128x oversampling Sample Rates: 44.1, 48, 88.2, 96kHz Word Lengths: 16-, 20-, 24-bit CD Drive Type: ATAPI CD-ROM (8x read, 4x write) CD Read/ Write Formats: Red Book, CD24 Hard Disk Type: High capacity IDE Drive Hard Disk Max Recording Times: 52 hours @ 44.1kHz/16-bit 16 hours @ 96.0kHz/24-bit Digital Inputs and Outputs: AES/EBU-compatible balanced XLR connectors S/PDIF-compatible unbalanced coaxial (RCA) connectors Analog Inputs and Outputs: Balanced XLR connectors (+4dBu) Unbalanced phono (RCA) connectors (-10dBV) Nominal Input and Output Level: Balanced: +4dBu (-15dBFS) Unbalanced: -10dBV (-15dBFS) Maximum Output: Balanced: +19dBu = 0dBFS Unbalanced: +5dBV = 0dBFS Input Impedance: Balanced: 15k Ohm nominal Unbalanced: 10kOhm nominal Output Impedance: Balanced: 75Ohm nominal Unbalanced: 150Ohm nominal Power Requirements: 90-240 VAC, 40W max, 50/60Hz Dimensions (WxHxD): 19"x 3.5" x 11" (483mm x 88mm x 279mm) Weight: 16.55 lbs. (6.2kg)

Docs and Downloads

  • Masterlink ML-9600 - Product OverviewOpen
  • Masterlink ML-9600 - Reference ManualOpen
  • Masterlink ML-9600 - Reference Manual AddendumOpen
  • Masterlink ML-9600 - System Software Update GuideOpen
  • Masterlink OS v3.03 Download
  • Masterlink OS v2.21Download
  • Masterlink CD24 ISO Builder Software Download

Images

Images

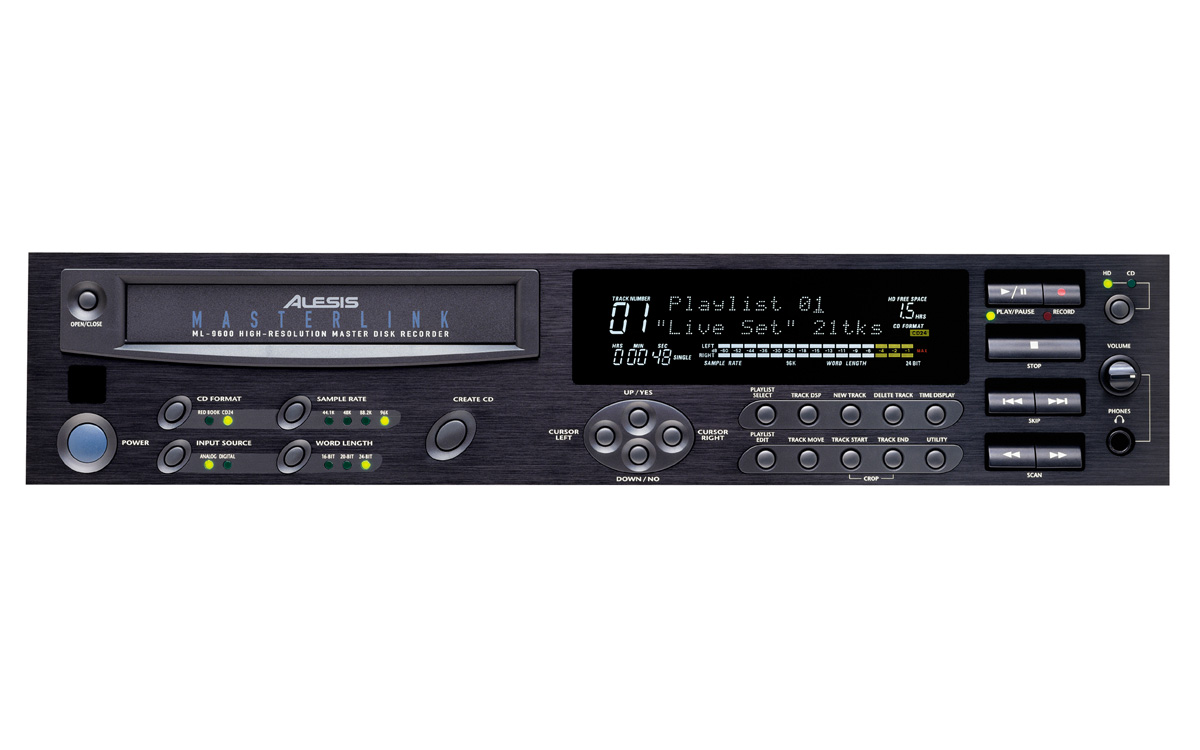

  • product image
